PC ESD Wafer FOUP Guide: Material Considerations for Cleanroom Wafer Handling
A PC ESD Wafer FOUP is used when wafer handling requires electrostatic discharge control, stable carrier structure and repeated use in cleanroom-related production environments. In semiconductor manufacturing, the carrier material affects more than durability. It can also influence ESD control, wafer protection, handling stability and long-term usability.
A carrier may fit the wafer size, but the material still needs to match the actual handling environment. If the material is not suitable for the process, problems may appear later during loading, unloading, transfer or daily cleanroom use.
This guide explains why PC ESD material is commonly used for Wafer FOUP applications, when it may be suitable and what to check before choosing a wafer carrier for semiconductor cleanroom handling.
If you are looking for a general introduction, you can first read our Wafer FOUP Guide for 12-Inch Wafer Handling. If you are preparing specifications before requesting a quote, you can also refer to our 12-Inch Wafer FOUP Specification Guide.

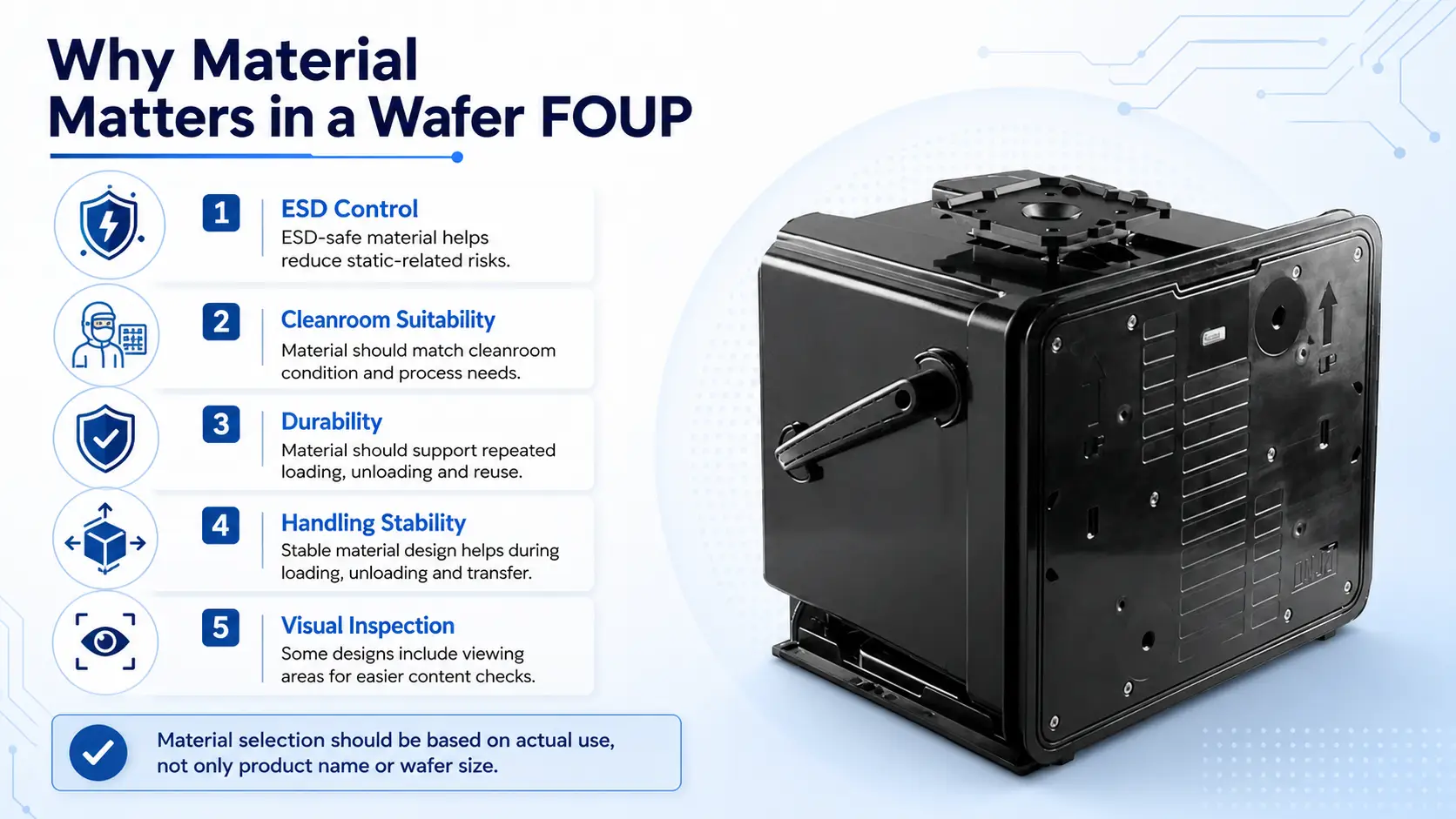

Why Material Matters in a Wafer FOUP?
A Wafer FOUP is not just a storage container. It is part of the wafer handling flow, so the material should be reviewed together with wafer size, slot design, ESD requirement and cleanroom condition.
The material may affect:
- ESD control
Static discharge can create handling risks for wafers or semiconductor components. ESD-safe material helps reduce static-related risks, but it does not completely eliminate ESD. - Cleanroom handling suitability
The material should match the cleanroom condition, handling method and process requirement. - Durability
A wafer carrier may be loaded, unloaded, moved and reused many times. If the material is not suitable for repeated use, the problem may appear after the carrier enters daily production. - Handling stability
The carrier should remain stable during loading, unloading and transfer. - Visual inspection
Some Wafer FOUP designs include transparent or viewing areas, allowing operators to check contents without opening the carrier too often.
Material selection should be based on how the carrier will actually be used, not only on product name or wafer size.
What Is PC ESD Material in Wafer FOUP Applications?
PC ESD material refers to polycarbonate material with electrostatic discharge control properties. In Wafer FOUP applications, it is used when the carrier needs both structural strength and ESD-safe handling performance.
PC material provides a stable carrier body for repeated use. With ESD properties, it can also help reduce static-related handling concerns during wafer storage, transfer and loading.
PC ESD material may be considered for:
- Cleanroom wafer storage
- Wafer transfer between process areas
- Static-sensitive wafer or component handling
- Repeated semiconductor production use
- FOUP-style wafer carrier applications
- Wafer handling where ESD control is required
PC ESD should not be treated as a universal solution. The correct material still depends on wafer sensitivity, cleanroom condition, handling frequency, cleaning method, equipment interface and process requirement.
Why ESD Control Is Important for Wafer FOUPs
Electrostatic discharge is a common concern in semiconductor environments. Even when a Wafer FOUP is used only for storage or transfer, static buildup may still create risk depending on the wafer, component or process condition.
An ESD-safe Wafer FOUP can help reduce static-related handling concerns during:
- Wafer loading and unloading
- Cleanroom transfer
- Temporary wafer holding
- Movement between process areas
- Repeated production handling
Not every wafer carrier needs the same ESD requirement. However, if the process involves static-sensitive wafers, semiconductor components or controlled cleanroom handling, PC ESD material should be reviewed before ordering.
PC ESD Wafer FOUP vs General Plastic Wafer Carrier
A general plastic wafer carrier may be suitable for basic storage or lower-risk handling, depending on the process. For static-sensitive cleanroom handling or repeated production use, PC ESD material may be more suitable.
| Item | General Plastic Wafer Carrier | PC ESD Wafer FOUP |
|---|---|---|
| Main Purpose | Basic wafer storage or handling | Wafer storage, transfer and ESD-safe handling in controlled environments |
| ESD Control | Depends on material type and design | Designed to support electrostatic discharge control |
| Cleanroom Use | May be suitable depending on the material and application | Often selected when ESD control and cleanroom handling are required |
| Durability | Varies by material and structure | Supports repeated handling with a stable carrier structure |
| Selection Focus | Wafer size, storage need and basic protection | Wafer size, ESD requirement, handling frequency and process conditions |
This comparison is not saying one material is always better. The right choice depends on the actual handling environment and process risk.

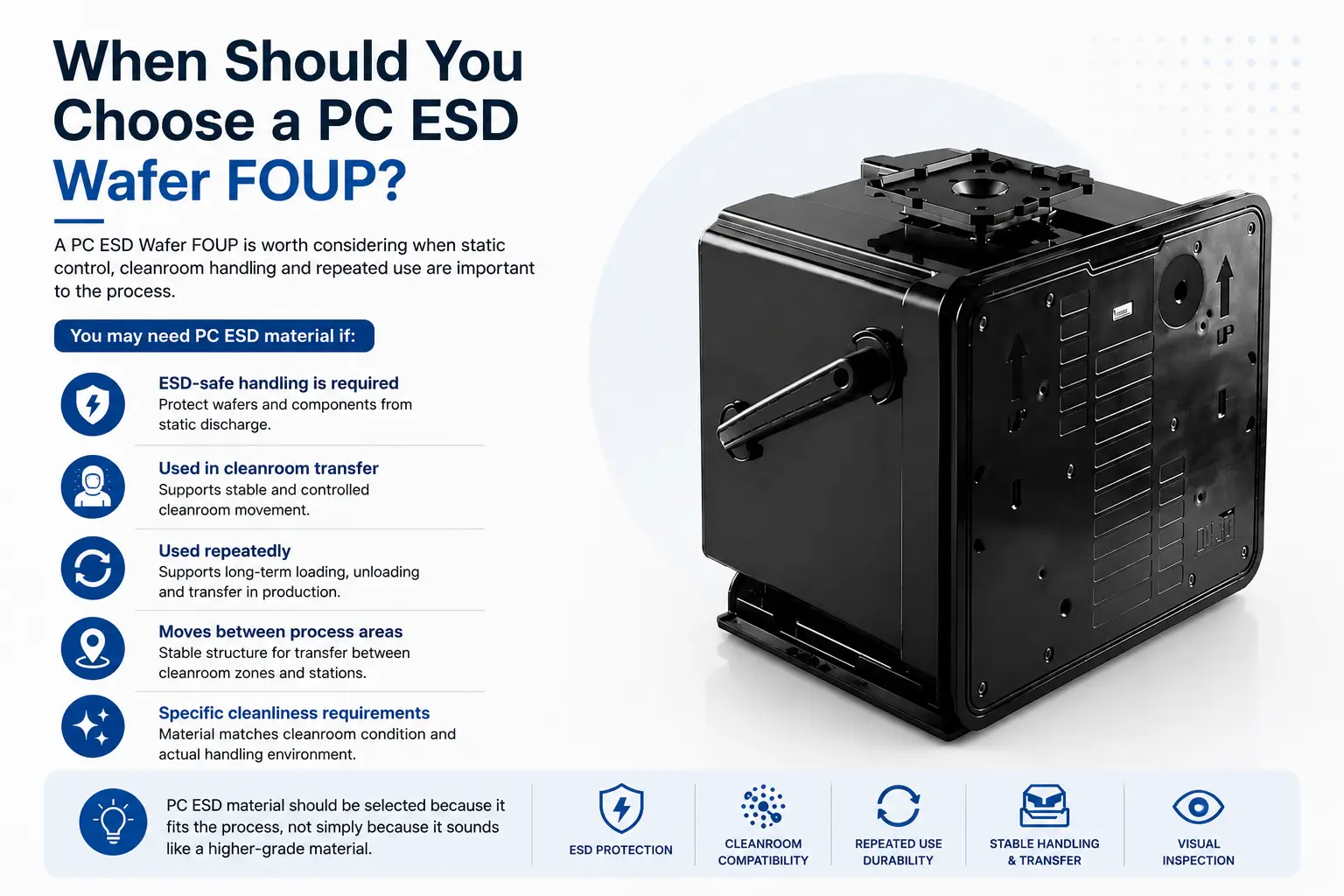

When Should You Choose a PC ESD Wafer FOUP?
A PC ESD Wafer FOUP is worth considering when static control, cleanroom handling and repeated use are important to the process.
You may need PC ESD material if:
- The process requires ESD-safe handling
If wafers or semiconductor components are sensitive to static discharge, the carrier material should support ESD control. - The carrier is used in cleanroom transfer
Cleanroom wafer handling often requires stable and controlled movement. - The carrier is used repeatedly
For production use, the material should support long-term loading, unloading and transfer. - The carrier moves between process areas
Movement between cleanroom zones, inspection stations or production areas may require a stable carrier structure. - The process has specific cleanliness requirements
The carrier material should match the cleanroom condition and actual handling environment.
PC ESD material should be selected because it fits the process, not simply because it sounds like a higher-grade material.
Material Factors to Check Before Ordering
Before choosing a Wafer FOUP material, it is not enough to confirm wafer size only. The supplier should also understand how the carrier will be used in daily production, including loading frequency, transfer method, cleanroom condition and ESD requirement.
| Material Factor | What to Check |
|---|---|
| ESD requirement | Confirm whether the process requires ESD-safe wafer or component handling. |
| Cleanroom condition | Check whether the material matches the cleanroom handling environment. |
| Handling frequency | Review how often the carrier will be loaded, unloaded and transferred. |
| Durability requirement | Consider whether the carrier needs to support long-term repeated use. |
| Wafer type | Confirm whether the carrier holds bare wafers or other semiconductor handling objects. |
| Visual inspection need | Check whether operators need to view contents without opening or excessive handling. |
| Tracking need | Review whether carrier identification or production management is required. |
Checking these items early can reduce material mismatch and make the carrier easier to use in real production conditions.
Does Every Wafer FOUP Need PC ESD Material?
Not always. The material requirement depends on the wafer sensitivity, cleanroom condition, handling frequency and production process.
A PC ESD Wafer FOUP may be more suitable when the carrier is used for static-sensitive wafer handling, repeated cleanroom transfer or semiconductor production support.
For basic storage or lower-risk handling, another material may be considered depending on the application. However, if ESD control is part of the process requirement, the carrier material should be confirmed before ordering.
YJ Stainless PC ESD 12-Inch Wafer FOUP Support
YJ Stainless provides 12-inch Wafer FOUP solutions for semiconductor wafer storage, cleanroom transfer and process handling.
The 12-Inch Wafer FOUP TJF-U12-25S is made with PC ESD material and designed with a 25-slot capacity. It is suitable for cleanroom wafer storage, wafer transport and production support.
YJ Stainless can also support custom planning based on actual process requirements, including dimension modification, RFID support, equipment interface compatibility and wafer handling needs.
If your process requires ESD-safe material, repeated cleanroom handling or custom wafer carrier design, YJ Stainless can help review your wafer handling requirements and recommend a suitable carrier solution.
Conclusion
Material selection is an important part of Wafer FOUP planning. For semiconductor cleanroom handling, the carrier material should support ESD control, durability, handling stability and process compatibility.
A PC ESD Wafer FOUP may be suitable when wafers or semiconductor components require ESD-safe handling, repeated transfer or cleanroom production support.
If you need a PC ESD 12-Inch Wafer FOUP with 25-slot capacity, RFID support or custom wafer carrier design, contact us to discuss your material requirements, cleanroom handling process and custom carrier specifications.
FAQ
1. What is a PC ESD Wafer FOUP?
A PC ESD Wafer FOUP is a wafer carrier made with polycarbonate material that supports electrostatic discharge control. It is used for wafer storage, cleanroom transfer and semiconductor handling where ESD-safe material may be required.
2. Why is PC ESD material used for Wafer FOUPs?
PC ESD material is used to support ESD-safe handling, carrier durability and stable repeated use in semiconductor cleanroom environments.
3. Is PC ESD material necessary for every Wafer FOUP?
Not always. PC ESD material is recommended when the carrier is used for static-sensitive cleanroom handling, repeated wafer transfer or semiconductor production support.
4. What should I check before choosing Wafer FOUP material?
Check ESD requirements, cleanroom conditions, handling frequency, durability needs, wafer type, visual inspection needs and carrier tracking requirements.
5. Can a PC ESD Wafer FOUP be customized?
Yes. A PC ESD Wafer FOUP can be customized by slot quantity, dimensions, RFID support, equipment interface and wafer handling requirements.
